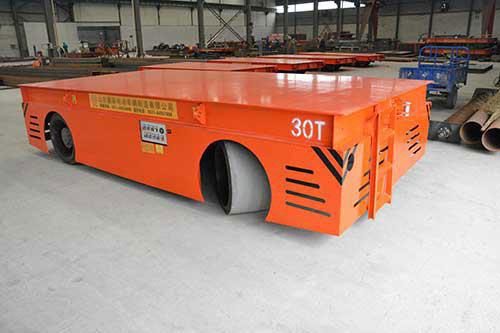

Easy operated battery rail transfer cart
A detail introduction
The KPJ series cable drum-powered electric transfer cart has a cable drum on the electric transfer cart, and the cable drum is hysteresis coupled to ensure that the cable is evenly stressed and not easily pulled. The cable drum 380V power supply provides power to the YZ type overhead crane metallurgical motor on the transfer cart, and the motor drives the transfer cart to run. When the electric transfer cart is running, the cable drum automatically rolls up or releases the cable, which is affected by the length of the reel. Generally, the large running distance is less than 200m.
Advantage of operated battery rail transfer cart
Technical data
| KPJ Cable drum supply electric rail transfer cart | ||||||||||
| Type | KPJ | KPJ-6 | KPJ-10 | KPJ-16 | KPJ-25 | KPJ-40 | KPJ-63 | KDJ-100 | KPJ-160 | KDJ-200 |
| Capacity(t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Flat cart size(mm) | L | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| B | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 2800 | |
| H | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1150 | 1250 | |
| Traveling speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 20 | |
| Wheel distance A(mm) | 2000 | 2000 | 2200 | 2500 | 2800 | 3200 | 3600 | 4500 | 4500 | |
| Gauge C(mm) | 1435 | 1435 | 1435 | 1435 | 1635 | 1735 | 1850 | 2000 | 2000 | |
| Wheel Dia (mm) | 300 | 300 | 400 | 400 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Small turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Motor type/Power(KW) | YZ132M1-6 | YZ132M2-6 | YZ160M1-6 | YZ160M2-6 | YZ160L-6 | YZ160M2-6 | YZ160L-6 | |||
| 2.2 | 3.7 | 5.5 | 7.5 | 11 | 2X7.5 | 2X11 | ||||
| Power supply type | Cable drum | AC380V 3X2.5+1X1.5 | AC380V | AC380V | ||||||
| 3X4+1X2.5 | 3X6+1X4 | |||||||||
| Recommend rail type | P24 | P38 | P43 | QU80 | QU100 | |||||
| Number of wheels | 4 | 4 | 4 | 4 | 8 | 8 | ||||
| Wheel pressure(t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight(t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
| Mark:1)Gauge, flat cart size and capacity could be customized according to the requirement | ||||||||||
| 2)Optional wireless remote control | ||||||||||
| 3)Optional frequency converter speed control, two-speed control | ||||||||||
| 4)When the running distance is less than 20m, the cable reel can be used according to the customer's request, instead of the cable-type (KTP) transfer cart. | ||||||||||
| 5) Rail car back and forth setting system | ||||||||||
| 6)When the transfer cart meets people 2 meters, it will be stopping and alarm. | ||||||||||
