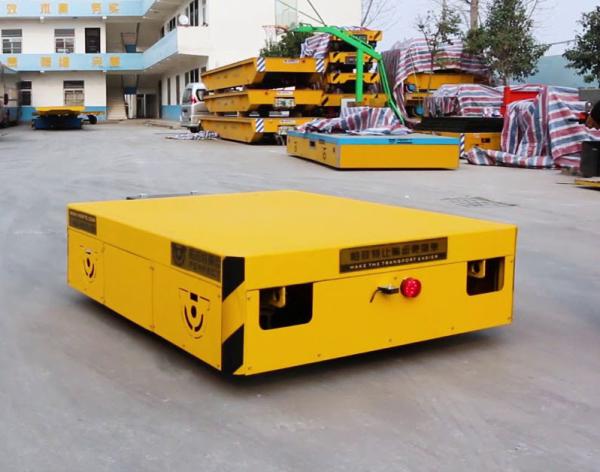

Industrial material trackless electric transfer cart for sale
Product description of trackless electric transfer cart
Trackless electric transfer car is a battery as a power supply,
motor gearbox as a driving system, solid rubber wheels directly on
the ground to walk the transport erstwhile, its operation is not
restricted, imported wheels to ensure that the ground is not
damaged, 360 degrees in situ turn to adapt to a tighter space
operation, 360 degrees no dead angle protection, automatic stop and
other functions, Security issues in the process of operation are
guaranteed. Trackless vehicle electric transfer car, is commonly
used in the factory handling equipment, is the workshop large-scale
equipment transfer and cross-over common equipment, compared to the
track flat car more convenient, can greatly improve production
efficiency.
Application of trackless electric transfer cart
5s workshop, automobile mold, material transfer, space equipment
workshop, air-conditioning workshop, casting mold plant
Materials: large mold, aluminum coil, steel, ingot, boiler, casting
module
1. Mainly used to carry heavy things.
2.Used in factories, coal mines, industrial areas
3. Running distance is infinite
4. Conditions of high temperature and explosion resistance
Technical data of trackless electric transfer cart
| Capacity(t) | 2 | 20 | 50 | 63 | 100 | 150 | ||
| Flat-size(mm) | (L) | 2000 | 4000 | 5500 | 5600 | 6500 | 10000 | |
| (W) | 1500 | 2200 | 2500 | 2500 | 2800 | 3000 | ||
| (H) | 450 | 550 | 650 | 750 | 900 | 1200 | ||
| Wheelbase(mm) | 1200 | 2800 | 4200 | 4300 | 4900 | 7000 | ||
| Rail inner distance(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | 2000 | ||
| Wheel diameter(mm) | 270 | 350 | 500 | 600 | 600 | 600 | ||
| Number of wheels | 4 | 4 | 4 | 4 | 4 | 8 | ||
| Ground clearance(mm) | 50 | 50 | 50 | 75 | 75 | 75 | ||
| Traveling speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | ||
| Motor power(kW) | 1 | 2.2 | 5 | 8 | 10 | 15 | ||
| Battery capacity(A/h) | 180 | 180 | 330 | 400 | 440 | 600 | ||
| Battery voltage(v) | 24 | 48 | 48 | 72 | 72 | 72 | ||
| Full load continuous running time(H) | 4.32 | 4 | 3.3 | 3.6 | 3.2 | 2.9 | ||
| Recharge mileage(Km) | 6.5 | 4.8 | 4 | 4.3 | 3.8 | 3.2 | ||
| Max wheel pressure(KN) | 14.4 | 77.7 | 174 | 278.4 | 343.8 | 265.2 | ||
| weight(t) | 2.8 | 5.9 | 8 | 12.8 | 14.6 | 26.8 | ||
| Recommend rail type | P15 | P24 | P43 | P50 | QU100 | QU100 | ||
| Mark: | ||||||||
| 1)Gauge, flat cart size, and capacity could be customized according to requirements | ||||||||
| 2)Optional wireless remote control | ||||||||
| 3)Optional frequency converter speed control, two-speed control | ||||||||
| 4)When the running distance is less than 20m, the cable reel can be used according to the customer's request, instead of the cable-type (KTP) transfer cart. | ||||||||
| 6)When the transfer cart meets people 2 meters, it will be stopping and alarm. | ||||||||
| Note: For the battery, we also could use the lithium battery to replace the Battery according to the client's requirement. | ||||||||
