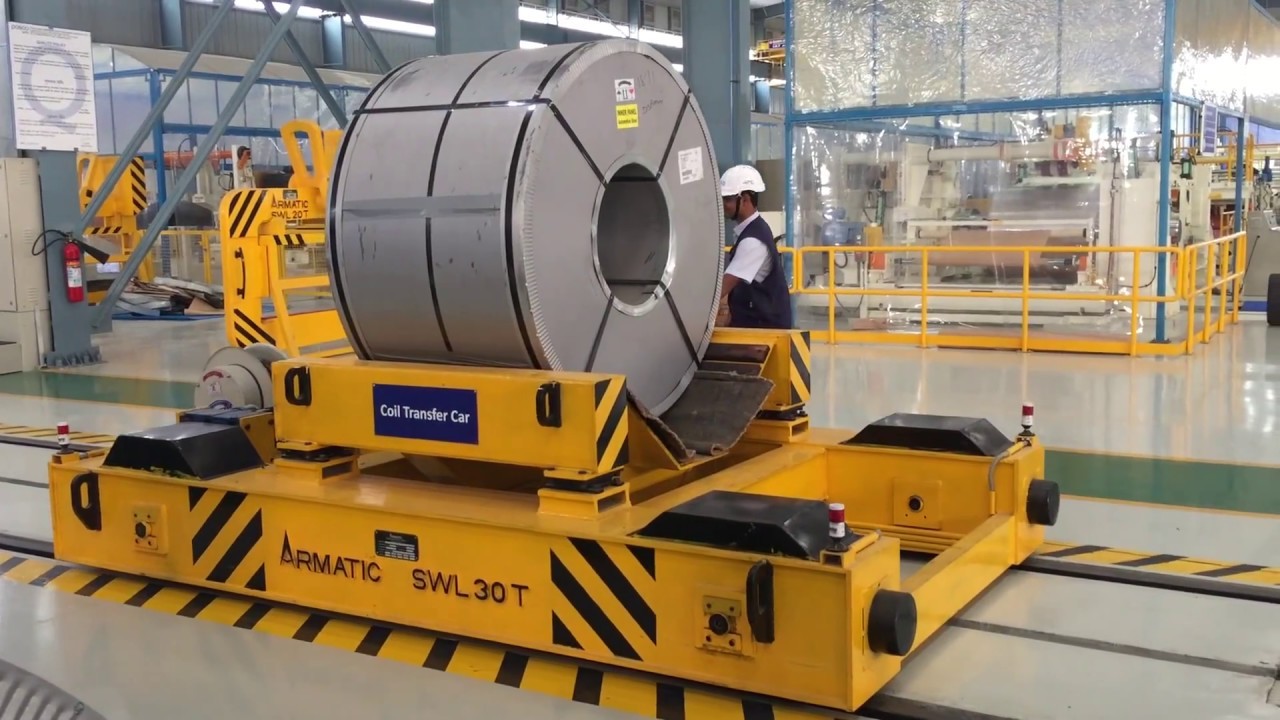

A brief introduction of rail electrical transfer cart
The transfer cart is also known as a track flat cart, an over-span flat cart, a trolley, and an electric flat cart. The invention has the advantages of simple structure, convenient use, easy maintenance, large bearing capacity, less pollution and the like. It is widely used in machine manufacturing and metallurgical plants and is used as a workshop for transporting heavy objects across a crane.
The advantage of rail transfer cart
Compared with other series of electric flat vehicles, the rail flat car has the advantages of simple structure, convenient operation, large bearing
capacity, and easy maintenance
Some main data of rail transfer cart
| KPJ Cable drum supply electric rail transfer cart | ||||||||||
| Type | KPJ | KPJ-6 | KPJ-10 | KPJ-16 | KPJ-25 | KPJ-40 | KPJ-63 | KDJ-100 | KPJ-160 | KDJ-200 |
| Capacity(t) | 6 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | |
| Flat cart size(mm) | L | 3600 | 3600 | 4000 | 4500 | 5000 | 5600 | 6300 | 8000 | 8200 |
| B | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2800 | 2800 | 2800 | |
| H | 550 | 550 | 600 | 650 | 700 | 850 | 900 | 1150 | 1250 | |
| Traveling speed(m/min) | 30 | 30 | 30 | 30 | 25 | 25 | 20 | 20 | 20 | |
| Wheel distance A(mm) | 2000 | 2000 | 2200 | 2500 | 2800 | 3200 | 3600 | 4500 | 4500 | |
| Gauge C(mm) | 1435 | 1435 | 1435 | 1435 | 1635 | 1735 | 1850 | 2000 | 2000 | |
| Wheel Dia (mm) | 300 | 300 | 400 | 400 | 500 | 600 | 700 | 700 | 700 | |
| Bottom clearance(mm) | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 70 | 70 | |
| Small turning radius | 30 | 35 | 50 | 55 | 60 | 80 | 100 | 100 | ||
| Motor type/Power(KW) | YZ132M1-6 | YZ132M2-6 | YZ160M1-6 | YZ160M2-6 | YZ160L-6 | YZ160M2-6 | YZ160L-6 | |||
| 2.2 | 3.7 | 5.5 | 7.5 | 11 | 2X7.5 | 2X11 | ||||
| Power supply type | Cable drum | AC380V 3X2.5+1X1.5 | AC380V | AC380V | ||||||
| 3X4+1X2.5 | 3X6+1X4 | |||||||||
| Recommend rail type | P24 | P38 | P43 | QU80 | QU100 | |||||
| Number of wheels | 4 | 4 | 4 | 4 | 8 | 8 | ||||
| Wheel pressure(t) | 1.91 | 3.21 | 4.87 | 7.5 | 11.5 | 16.9 | 27.6 | 22.8 | 28.5 | |
| Reference weight(t) | 3.4 | 3.72 | 4.2 | 6 | 8.5 | 11.4 | 15.2 | 25.5 | 31.5 | |
| Mark:1)Gauge, flat cart size and capacity could be customized according to the requirement | ||||||||||
| 2)Optional wireless remote control | ||||||||||
| 3)Optional frequency converter speed control, two-speed control | ||||||||||
| 4)When the running distance is less than 20m, the cable reel can be used according to the customer's request, instead of the cable-type (KTP) transfer cart. | ||||||||||
| 5) Rail car back and forth setting system | ||||||||||
| 6)When the transfer cart meets people 2 meters, it will be stopping and alarm. | ||||||||||
Application of rail transfer cart
The main application of moving the flat car and moving lift and carrying water billet vehicles, brick factory, kiln factory, refractory factory, ceramic
factory, roasting plant, such as electric kiln vehicles, electric kiln shipping vehicles, engineering, tunnels, sanitation electric transport vehicles,
electric dump trucks, electric sanitation trucks and so on. Electric transport vehicles and electric dump trucks are also used in flour mills, mining
plants, foundries, chemical plants, furnace plants, farms and so on.
Rail transfer carts parts workshop

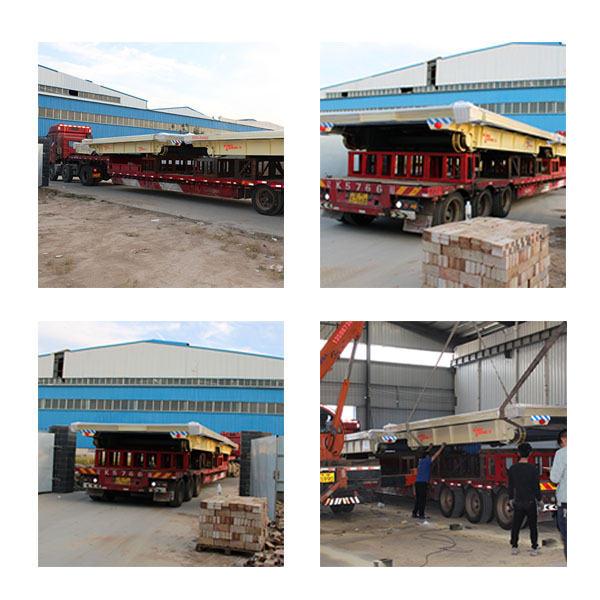

Packaging and delivery
