    Heavy load industrial motorized battery -driven railway transfer cart

    Ask Lasest Price
    Brand Name : Bestaro
    Model Number : KPJ
    Certification : CE ISO
    Price : usd 20000-100000set
    Payment Terms : T/T, D/P, D/A, L/C
    Supply Ability : 1000set/month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

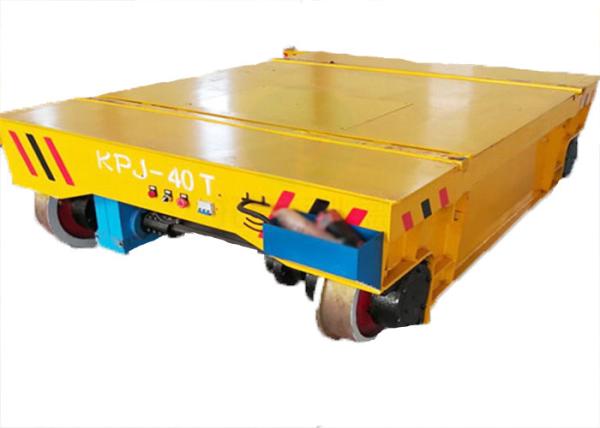

    Heavy load industrial motorized battery -driven railway transfer cart

    Heavy load industrial motorized battery-driven railway transfer cart


    A brief introduction


    Heavy load industrial motorized battery-driven railway transfer cart .literally, speak, it is an electric battery power trolley with rails, which is the traditional and mature type of railway transfer trolley. More importantly, it has been a new favorite in the industry transport field all over the world with a hot market. Especially for workshop transportation.

    It has widely applied in the industrial transportation field all over the world. Our automated guided transfer vehicles are available in a number of configurations specifically designed to suit the needs of our customers.



    The advantage of transfer cart

    • High temperature and explosion-proof;
    • The Dragged cable powered flatbed trailer for material transfer With simple structure and low price;
    • The hydraulic can be installed on the flat carts;
    • The Dragged cable powered flatbed trailer's using time is not limited;
    • The flatbed trailer for material transfer has no strict requirement on the rail’s construction;
    • Running on the straight railways or on the ‘S’ and arc-shaped railways.

    Some main data of transfer cart


    KPJ Cable drum supply electric rail transfer cart
    TypeKPJKPJ-6KPJ-10KPJ-16KPJ-25KPJ-40KPJ-63KDJ-100KPJ-160KDJ-200
    Capacity(t)61016254063100160200
    Flat cart size(mm)L360036004000450050005600630080008200
    B200020002200220025002500280028002800
    H55055060065070085090011501250
    Traveling speed(m/min)303030302525202020
    Wheel distance A(mm)200020002200250028003200360045004500
    Gauge C(mm)143514351435143516351735185020002000
    Wheel Dia (mm)300300400400500600700700700
    Bottom clearance(mm)505050606060607070
    Small turning radius303550556080100100
    Motor type/Power(KW)YZ132M1-6YZ132M2-6YZ160M1-6YZ160M2-6YZ160L-6YZ160M2-6YZ160L-6
    2.23.75.57.5112X7.52X11
    Power supply typeCable drumAC380V 3X2.5+1X1.5AC380VAC380V
    3X4+1X2.53X6+1X4
    Recommend rail typeP24P38P43QU80QU100
    Number of wheels444488
    Wheel pressure(t)1.913.214.877.511.516.927.622.828.5
    Reference weight(t)3.43.724.268.511.415.225.531.5
    Mark:1)Gauge, flat cart size and capacity could be customized according to the requirement
    2)Optional wireless remote control
    3)Optional frequency converter speed control, two-speed control
    4)When the running distance is less than 20m, the cable reel can be used according to the customer's request, instead of the cable-type (KTP) transfer cart.
    5) Rail car back and forth setting system
    6)When the transfer cart meets people 2 meters, it will be stopping and alarm.
