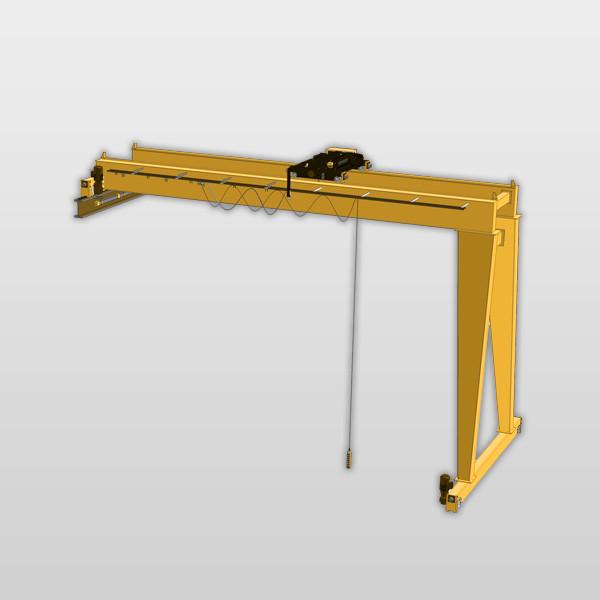

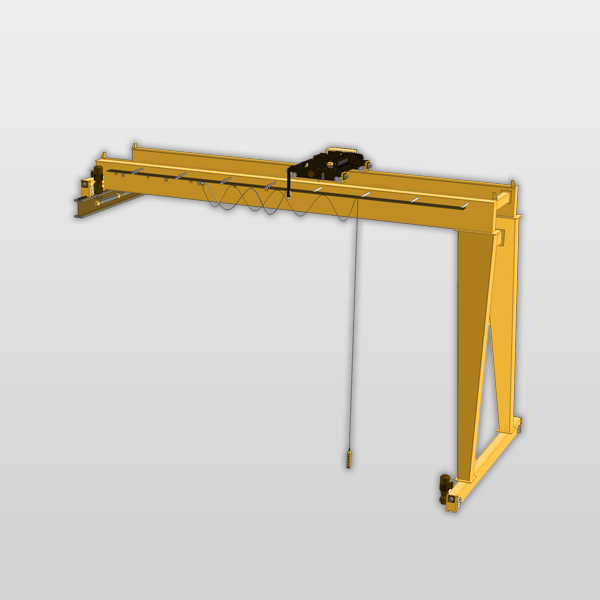

Semi portal gantry crane 3ton for sale
A brief introduction of semi-gantry crane
BMH model single beam semi-gantry crane is developed from MH model
gantry crane and LDA model overhead crane, it is a kind of track
traveling mid-duty type gantry crane, the one beam end traveling on
wall mounted track, another beam end traveling on ground track, the
capacity for 2t to 10t, span from 7.5m to 20m, working temperature
within -20--+40 centigrade.
This gantry crane is commonly used gantry crane, it is used in
outside/inside the warehouse for loading/unloading and lifting
material.
The control models are pendant pushbutton control or wireless remote control.
Technical data of semi-gantry crane
| Span | 10m~20m or others | ||||
| Lifting height | 6m, 9m or customized | ||||
| Capacity | 2t | 5t | 10t | ||
| Lifting speed(m/min) | 8, 8/0.8 | 8, 8/0.8 | 7/0.7 | ||
| Cross traveling speed(m/min) | 10 or 20 | 10 or 20 | 10 or 20 | ||
| Long traveling speed(m/min) | 20, 30 | 20, 30 | 20, 30 | ||
| Power source | 380V, 50HZ, 3 phase | ||||
| Working temperature | -20~40°C | ||||
| Control model | Pendant control or wireless remote control | ||||
Advantage of semi-gantry crane
1. Optimized structure design, make full use of various types of workshop space.
2.Compact design
3. Lowest headroom height
4. Increasing the existing plant effective workspace, Optimization of space utilization
5. Perfect extrinsic feature
